Insulating Machines

Whether semi-automatic or fully-automatic - Schümann machines insulate coils and bars up to a lenght of 15,000 mm. We develop special equipment to meet your specific requirements.

Bar Insulating Machine Model

Bar Insulating Machine Model "630"

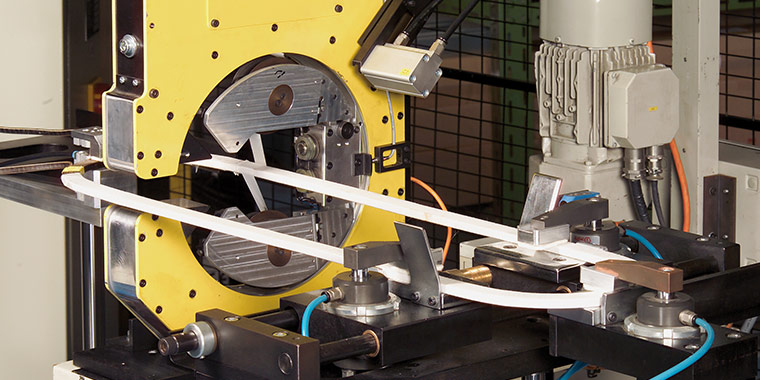

Automatische Isoliermaschine Modell

Automatic insulating machine modell "640"

for "Flat Coil“ Technology.

Isolierroboter Modell

Taping Robot model "670"

for taping closed, diamond shaped coils and bars up to 2.800mm length.

Taping Robot Model

Taping Robot Model "670"

for taping closed, diamond shaped coils and "Flat Coils",  with one Taping Robot model "670" and two workstations

Taping Robot Model

Taping Robot Model "672"

for taping bars up to 15,000 mm length

Taping Robot Model

Taping Robot Model "675"

for bars up to 15.000 mm length

Our Taping Heads

Our Taping Heads

For automatic taping through the coil's nose and for taping the area between the leads. With our wide variety of taping heads we cover your coil and bar dimensions.

3D Measuring System

3D Measuring System

for the scanning of formed bars
