Insulating Machines

Whether semi-automatic or fully-automatic - Schümann machines insulate coils and bars up to a lenght of 15,000 mm. We develop special equipment to meet your specific requirements.

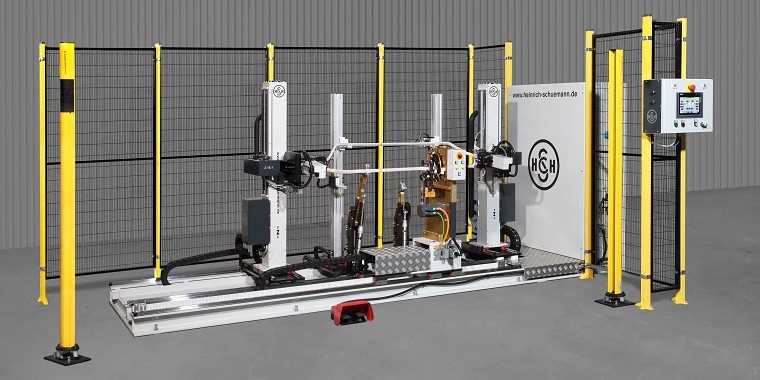

Automatic Insulating Machine Model "625"

Insulating machine with 1 to 3 axes for the insulation of core part, transition area and involute.

Automatic Insulating machine Model

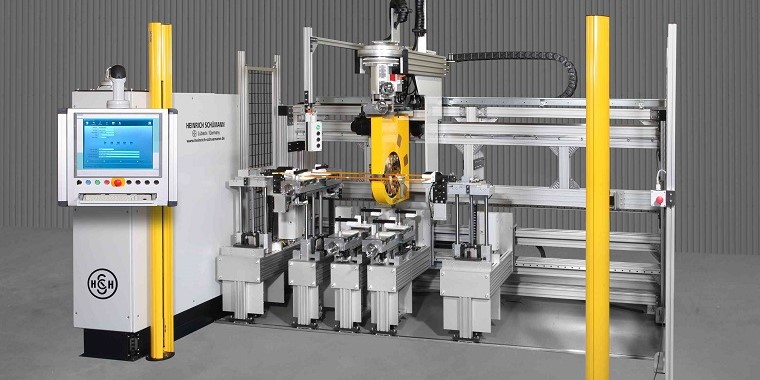

Automatic Insulating Machine Model "640"

for "Flat Coil" Technology.

Taping Robot Model

Taping Robot Model "670"

for taping closed, diamond shaped coils and Flat Coils

Taping Robot Model

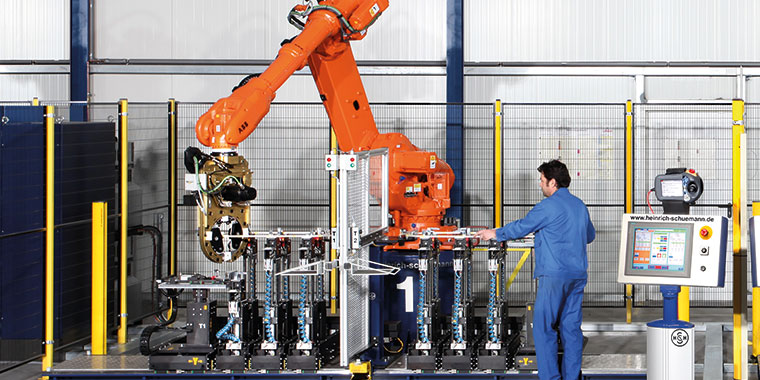

Taping Robot Model "670"

for taping closed, diamond shaped coils and "Flat Coils", with one Taping Robot model "670" and two workstations.

Taping Robot Model

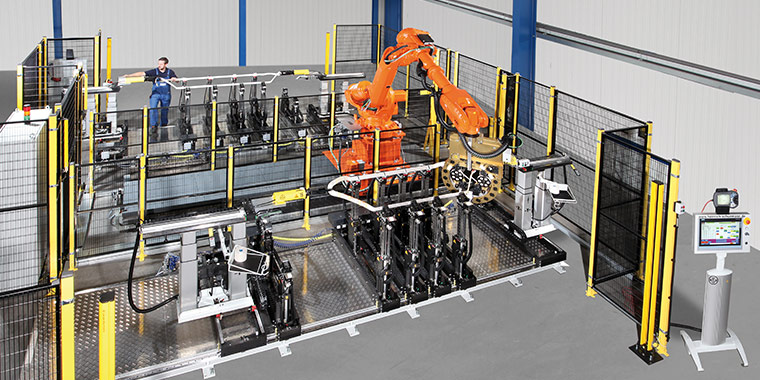

Taping Robot Model "672"

for taping closed, diamond shaped coils and bars up to 15,000 mm length

Taping Robot Model

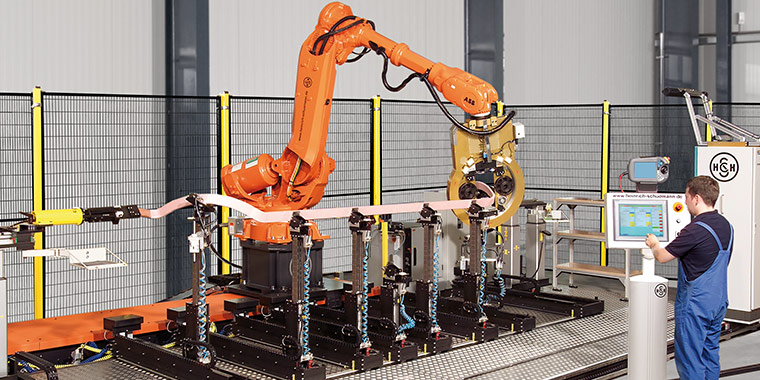

Taping Robot Model "675"

for bars up to 15,000 mm length

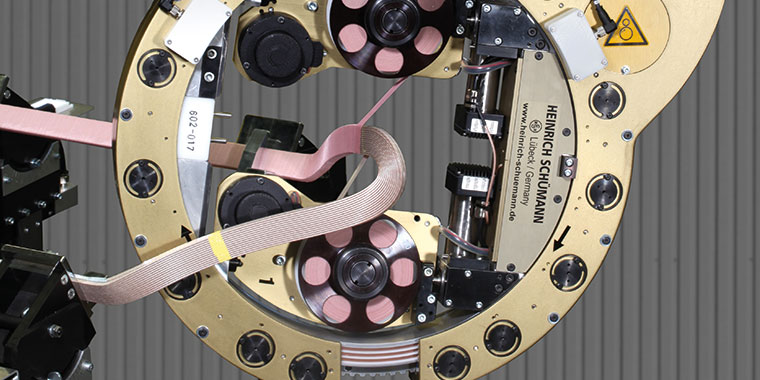

Our Taping Heads

Our Taping Heads

For automatic taping through the coil's nose and for taping the area between the leads. With our wide variety of taping heads we cover your coil and bar dimensions.

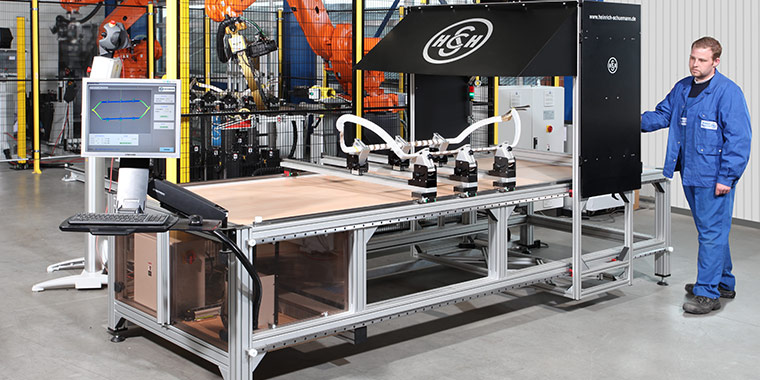

3D Mesauring Table

3D Mesauring Table

for the scanning of preformed coils
